CONVERSION OF TWO WAY MOBILE RADIO FOR AMATEUR RADIO USE

SPONSORED LINK

www.radiocom.org.uk

EMAIL

zannusi@yahoo.co.uk

DAVE MCKAY G1JWG

ASCOM RADIO INFORMATION



HOME

RADIO LIST

Ascom SE-Series

                                                                                     The Ascom SE series consists of the following radios

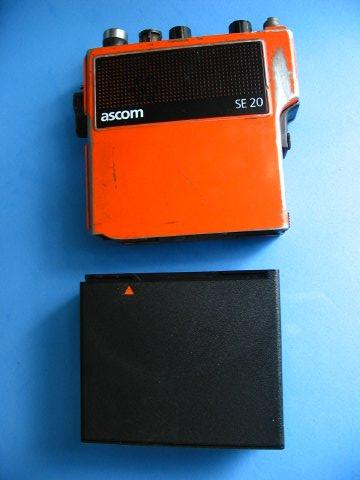

SE20

Type:  Handheld

 Frequency range:   68-87.5 MHz, 138-174 MHz, 400-470 MHz

Power output: 1 or 2.5 W
Battery:  7.2 VDC
Channels: 3 channels, XTAL or 200 channels with PLL

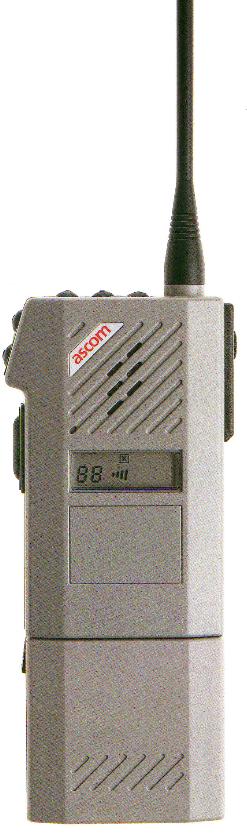

SE110

Type:Handheld radio
Frequency range:  68-88 MHz, 138-174 MHz, 400-470 MHz
Power output:  1 or 2.5 W
Battery: 7.5 VDC
Channels:  6 channels synthesised

Also known as Philips LP20

Can be converted to 70Mhz/145mhz and 430mhz ham bands easily simply by reprogramming.

Programming interface

vhf service document

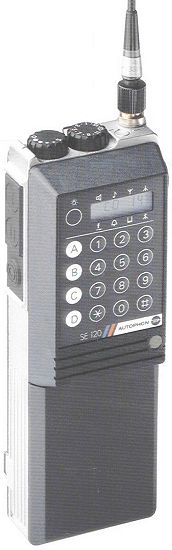

SE120

Type:  Handheld radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1, 2.5 or 5 W
Battery: 7.6 VDC
Channels: Dependant on variant up to 1000 synthesised EPROM

Rebadged Autophon SE120

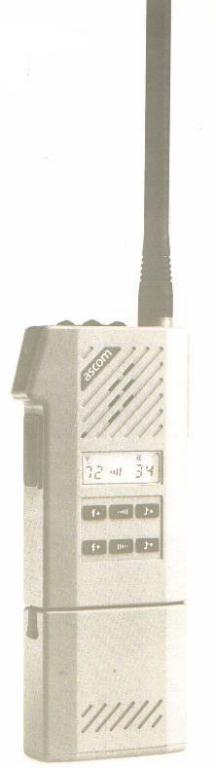

SE140

Type:  Handheld radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 100 channels synthesised PC software

Also known as Philips LP20 and BOSCH - HFG68 - HFG168 - HFG458

Can be converted to 70Mhz/145mhz and 430mhz ham bands easily simply by reprogramming.

Programming interface

uhf service document

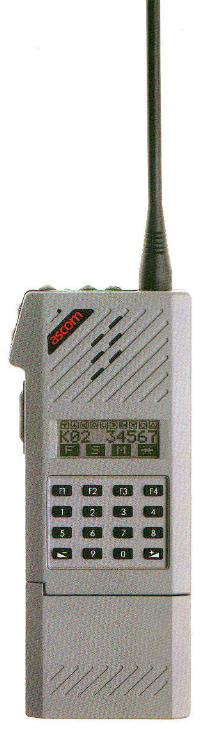

 SE160

Type: Handheld radio
Frequency range: 68 MHz, 138-174 MHz, 400-470 MHz
Power output: 1 or 2.5 W
Battery: 7.5 VDC
Channels: 100 channels synthesised PC software

This is the high tier radio of the 110/140/160 series. It has multiple signalling and trunking capabilities. Conversion of trunked model to standard PMR is reputed to be harder than the 110/140.

Programming interface

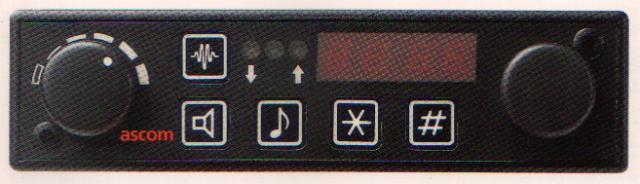

SE155

Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W
Battery: 12VDC
Channels: 16 channels synthesised BPROM(82s23/82s123)

Convertible to 70/144/430 by programming bprom.

Also known as Autophon/Radiovox SE155 and Pfitzner/Teletron T8000 in versions

T8800 for VHF low low ( 34 MHz), T8400 VHF low ( 70 MHz )
T8200 VHF high ( 145 MHz ) and T8700 UHF ( 435 MHZ )

Information on Programming

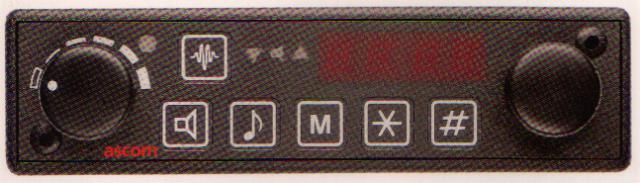

SE157



Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W

Battery: 12VDC
Channels: 40 channels synthesised EPROM

Convertible to 70/144/430 by reprogramming eprom.

 Known as a Condor 16 VHF high,  The Condor 46 is the UHF
version and the Condor 8  VHF low version of SE157.

Also as Teletron TMC82 ( 145 MHz ),  TMC84 ( 70 MHz ) and TMC87 (435 MHz )

Known as Radiovox/Autophon SE157 ( UK and Swiss )

Information on Programming

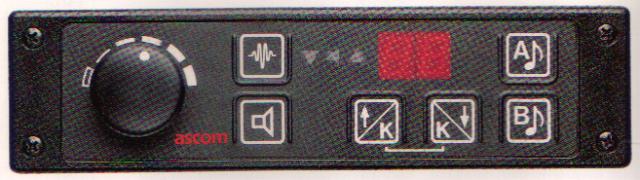

SE540

Type:  Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 10W
Battery: 12VDC
Channels: 99 channels synthesised EPROM

Convertible to 70/144/430 by reprogramming eprom.

Was used in the UK by the Metropolitan Police

Also known as a Condor16 or 64

Information on Programming

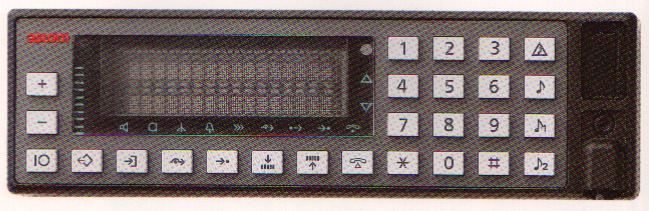

SE550

Type: Mobile radio
Frequency range: 68-88 MHz, 138-174 MHz, 400-470 MHz
Power output: 25W
Battery: 12VDC
Channels: Synthesised PC software

Also known as a Condor 3000

Was used in MPT-1327 trunked networks on low band VHF 68-88Mhz in the UK by the Water companies.

Easily converted to 68-88Mhz free tuning by changing the personality EPROM thanks to PA4DEN.

Also Andy G0BEQ has a site with excellent documentation on this radio

Ascom SE-Series
Radio Model Number

SE-XXX-XXX-X-XXXXX-X..

Example SE-160-082-2

>

Typ

Freq. Band

TX Power

Channel Spacing

Model Variation

Option

>

SE

160

08

2

2

S
>

^

^

^

^

^
>

110=SE110

04=33..45MHz

0=driver only

1=12.5kHz

S = Standard
>

140=SE140

05=45..58 MHz

1= 1.0 W

2=20/25kHz

E = SBB with Keyboard
>

160=SE160

08=68..88 MHz

2= 2.5 W

3= 25.0 kHz

C = Crypto
>

540=SE540

14=132..148 MHz

5= 5.0 W

5 = 50.0 kHz

D = Digital
>

550=SE550

16=146..174 MHZ

6= 6.0 W

T = Trunking
>

660=SE660

20=173..224 MHz

7= 10.0 W

X = EEX
>

21=205..207 MHz

8= 15.0 W

CT = Crypto-Trunking
>

33=300..344 MHz

9= 25.0 W

DT = Digital-Trunking
>

42=400..425 MHz

10=10 W

EC = SBB with Keyboard + Crypto
>

43=400..440 MHz

20=20W

ET = SBB with Keyboard + Trunking
>

45=425..450 MHz

25=25W

TX = Trunking + EEx

>

46=430..470 MHz

Teco = Trunking + low grade
>

47=450..470 MHz

Seco = standard + low grade (SE660)
>

92=892..980 MHz

TXeco = Trunking + Ex + low grade

This table comes from http://www.oppermann-telekom.de/se160-modelle.html
